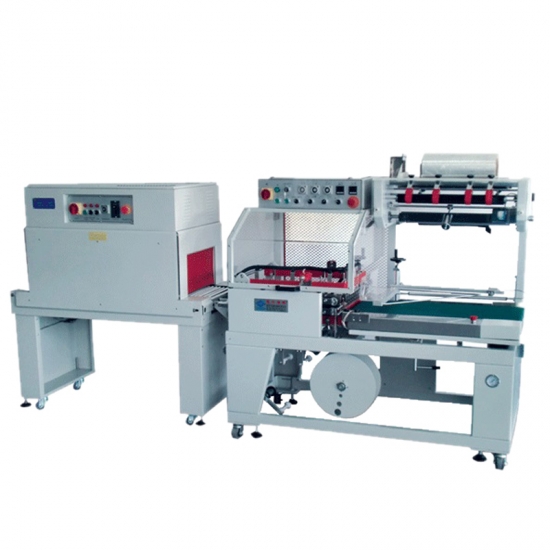

SG4555AM Heat Shrink Packaging Machine

Application:

It is used to pack kinds of small components, appliances and objects with POF, PP or PVC film etc, such as electrical products, hardware, software, wallpaper, cosmetics, food, printing products, medications, floor boards, ceramics etc.

Features:

1. All switches and units are original from famous manufacturers, ensuring the stable performances of machine. (e.g. Mitsubishi PLC ,Omron relay etc.)

2. Free to adjust the speed of conveyor belt by electronic speed controller.

3. The surface of machine would not be over heat because it is equipped with double insulated device.

4. Adopting imported insulated curtain to resist high temperature so as to reduce energy wasting.

5. It adopts stainless steel heater to make it heat up quickly, and equips with large power blowing motor to keep big even flowing.

6. Conveying speed or tunnel's temperature can be freely adjusted according to the size of products and output. Convey chain is made of solid poles covered by silica gel tube, to bear such objects in heavy and would not be distorted.

Technical data:

Machine type: Heat Shrink Packing Machine Series

Machine model: SG4555AM

Machine name: Heat Shrink Packaging Machine

Machine dimension: 1850*990*1600mm(L*W*H)

Machine carton size: 1960*1100*1800mm(L*W*H)

Packaging range: (40-500)*(60-350)*(5-140)mm

Sealing knife size: 550*450mm(L*W)

Machine NW/GW: 450/530KGS

Power supply: 1PH, 220V, 2KW

Air supply: 5kgs/cm2

Packing capacity: 10～30 packs/min

Packaging film: POF

Machine CBM: 3.88 m3
