C88DX Automatic Tea Bag Manufacturing (Bag Type) is suitable for inner and outer teabag packaging for products such as loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Darjeeling, Assam, Ceylon, etc.
l Features:
1.The packing material of the triangle packaging bag is nylon, non-woven fabric imported from Japan, which is non-toxic, non-bacteria, heat-resistant and high quality food-grade material, conforming to our national safety inspection standard.
2.The machine uses a unique sealing method--ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
lTechnical data:
Machine type:
Tea Bag Packing Machine Series
Machine Model:
C88DX
Machine name:
C88DX Automatic tea bag manufacturing (Bag type)
Packing speed:
40~60bags/min
Filling range:
1~5g
Accuracy:
±0.1g/bag
Packing roll width:
140, 160, 180(mm)
Outer bag size:
W:70-80mm, L: 90-100mm
Sealing method:
Cutting and sealing by ultrasonic
Quantity of seal device:
2sets
Power supply:
220V, 50Hz,1.5KW
Air supply:
0.6MPa (can be quipped with air compressor)
Dimensions:
2000*1350*2450mm(L*W*H)
Machine weight:6
600KGS
&

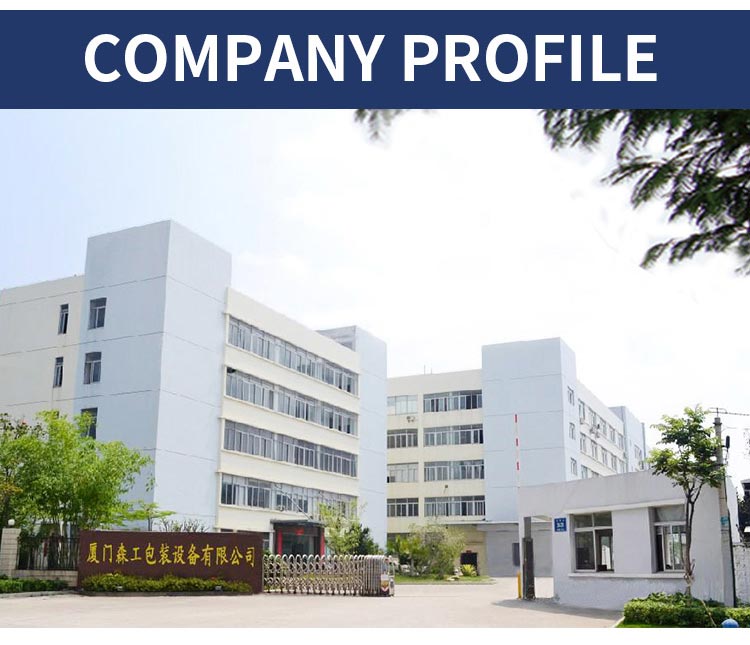

Xiamen Sengong Packing Equipment Co., Ltd was established in 2004. It is an in-novative and national high-tech enterprise. Our company specializes in the re-search & development, manufacturing, selling and servicing of itelligent
beveragepacking machines(pyramid bag, drip offee bag and tea bag, etc).
We have a very strong and professional ultrasonic technology team and
seniorexperiences of production management.
Our products have obtained a greatnumber of national practical patents and invention patents.
Sengong is also cer-tified by ISO, CE which ensures the safety standard for all users. With more
than ten years ot continuous progress In technology, we have created a series ot saterand more flexible,
stable and sanitary equipment,
providing advanced packag-ing solutions for global customers. And our
machines were sold all over the world including the USA, the UK, Italy ,Canada,Australia, Russia, Turkey, and so on.
Sengong owns an excellent after -sales service team and cloud support system(online). With more than ten experienced
